generator engine accessories

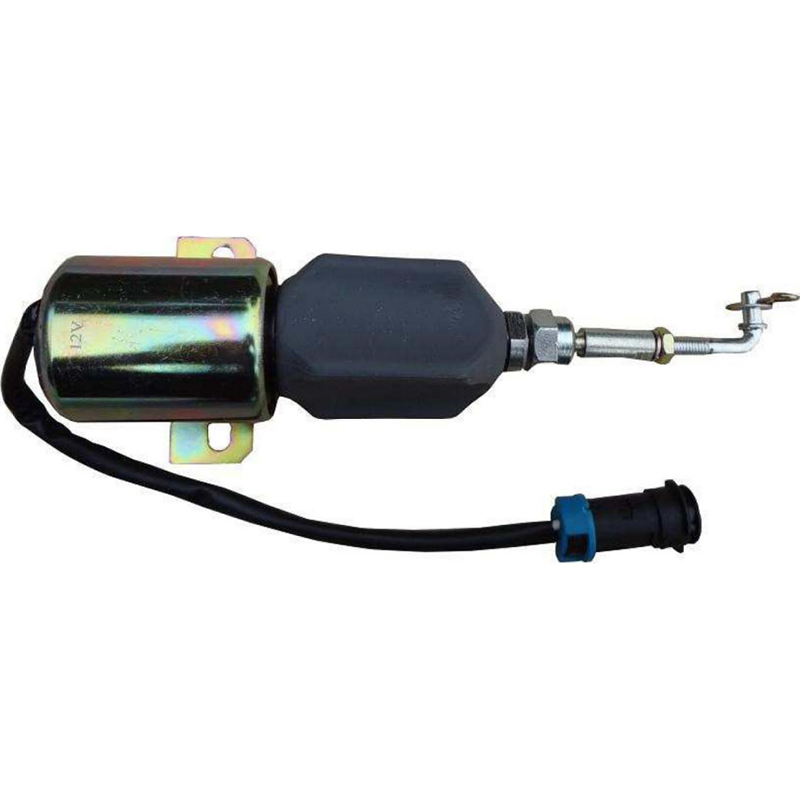

  • Specification of shutdown solenoid

    Specification of shutdown solenoid

    Model TDSS-12VDC TDSS-24VDC Voltage 12V DC 24V DC Pull current 32.9A 21.9A Hold current 0.60A 0.58A Pull force 71.5N 77.9N Hold force 94N 129N
  • Tacho sensor

    Tacho sensor

    Be used for gear rotation on speed measurement Combining the advantages of stable signal, wide range of operating temperature, small size, simple assembly, etc It covers a wide range of measurement, and it is able to measure the zero rotation on speed Appearance: Nickel plated Frequence range: 100-15000 Operating voltage: 8~32V with polarity protection Operating current: < 50 mA Operating temperature: -40~150°C Output signal: Sine wave Signal duty factor: 47±5% Inductance distance:0.5~...

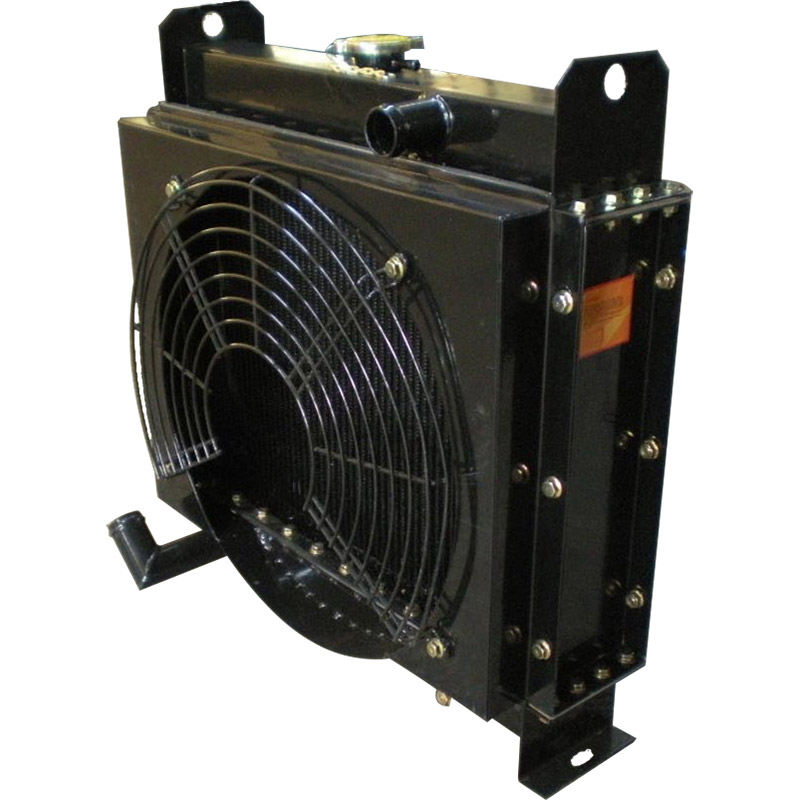

  • Radiator

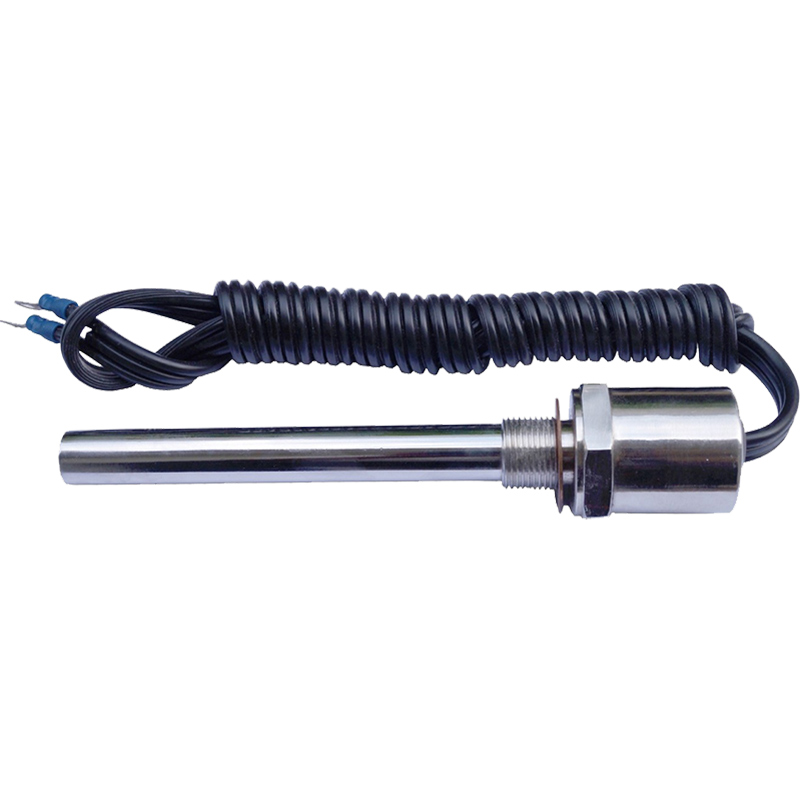

  • Oil heater

    Oil heater

    Main technical data: 1.Insulated Resistance :≥20MΩ 2.Electric Intensity : 1500V/1min 3.Ambient Temperature: -40~+80°C 4.Specification:  Model  Power(W)  Voltage (V) Diamension (mm)   L   H   M   TDOH-150/220   100-150   12 I 24 I 110 I 220   160   120 M22*1.5BSP0.75   TDOH-300/220   200-300   12 I 24 I 110 I 220   220   180   BSP1   TDOH-650/220   500-650   24 / 110/ 220   240   200 M30*15 BSP1
  • Engine Controller

    Engine Controller

    We offer Customers with different kinds of engine controllers,the controller with below features and paranmeters: Features: 1. Multiple protection features 2. Power generation frequency conversion speed 3. Built-in multiple sensor curves are optional 4. The sensor parameter curve can be customized 5. Highlight digital tube display measurements 6. English and symbolic instructions 7. Panel button setting and modifying system parameters Parameters: 1. Engine speed; 2. Engine oil pressure 3. Eng...
