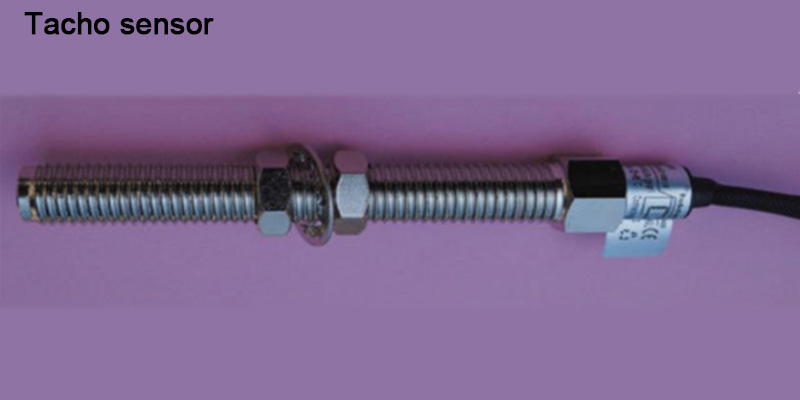

Speed Sensor

Short Description:

Product Detail


Product Tags



Be used for gear rotation on speed measurement
Combining the advantages of stable signal, wide range
of operating temperature, small size, simple assembly, etc
It covers a wide range of measurement, and it is able to measure the zero rotation on speed
Appearance: Nickel plated Frequence range: 100-15000
Operating voltage: 8~32V with polarity protection Operating current: < 50 mA
Operating temperature: -40~150°C
Output signal: Sine wave
Signal duty factor: 47±5%
Inductance distance:0.5~2.5mm
Tooth module:2~6

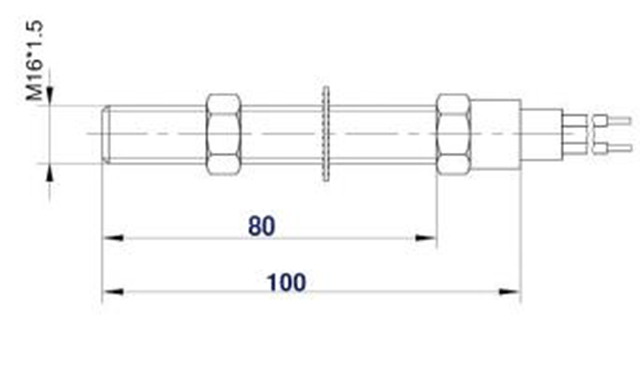

Thread fitting: M16X1.5
Cnnecting way: Two wires Protection rank: IP67
